NT156WHM-N32 15.6 inch resolution 1366×768 Surface Glare (Haze 0%) Contrast Ratio 500:1 (Typ.) Frequency 60Hz

NT156WHM-N32 15.6 inch resolution 1366×768 Surface	Glare (Haze 0%) Contrast Ratio 500:1 (Typ.) Frequency 60Hz
NT156WHM-N32 15.6 inch resolution 1366×768 Surface	Glare (Haze 0%) Contrast Ratio 500:1 (Typ.) Frequency 60Hz

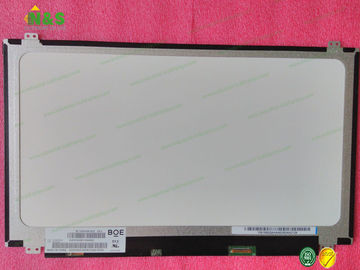

Großes Bild :  NT156WHM-N32 15.6 inch resolution 1366×768 Surface Glare (Haze 0%) Contrast Ratio 500:1 (Typ.) Frequency 60Hz

Produktdetails:
Herkunftsort: KOREA
Markenname: BOE
Zertifizierung: ISO9001
Modellnummer: NT156WHM-N32
Zahlung und Versand AGB:
Min Bestellmenge: 1-teilig
Verpackung Informationen: Antistatische Tasche, Blasen-Tasche, Schaum-Kasten und Karton-Kasten.
Lieferzeit: 1-3 Werktage
Zahlungsbedingungen: T / T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit: 500pcs/day

NT156WHM-N32 15.6 inch resolution 1366×768 Surface Glare (Haze 0%) Contrast Ratio 500:1 (Typ.) Frequency 60Hz

Beschreibung
Panel-Typ: EinSi TFT LCD Oberfläche: Greller Glanz (Dunst 0%)
Kontrastverhältnis: 500:1 (Art.) Größe: 15,6 Zoll
Auflösung: 1366×768
Markieren:

industrial lcd screen

,

industrial lcd panel

NT156WHM-N32 15.6 inch resolution 1366×768 Surface Glare (Haze 0%) Contrast Ratio 500:1 (Typ.) Frequency 60Hz



NT156WHM-N32 Basic Information

Panel Model NT156WHM-N32
Panel Brand BOE
Descrition a-Si TFT-LCD ,15.6 inch, 1366×768
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Remarks eDP1.2



NT156WHM-N32 Mechanical Features

Dot Resolution 1366(RGB)×768 (WXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 100 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.084×0.252 mm (H×V)
Pixel Pitch 0.252×0.252 mm (H×V)
Weight 370g (Max.)
Surface Glare (Haze 0%)
Active Area 344.232×193.536 mm (H×V)
Outline Dimension 359.5×223.8 mm (H×V)
Outline Depth 3.8 (Max.) mm
Shape Style Flat (PCBA Flat, Depth 3.4~4.0mm)
Holes & Brackets Face mounting holes (8 pcs) on up, down slugs
Landscape or Portrait Landscape type
Touch Panel Without



Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:

  1. AUO LCD Screen
  2. Samsung LCD Display
  3. LG LCD Screen replacements
  4. Sharp LCD panels &Chimei LCD Parts.
  5. Innolux LCD Modules & BOE LCD Screen.

We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.

Here comes our other LCD panels stock for your easy reference:



Panel Model Brand Size Resolution
MV236FHB-N10 BOE 24.0" 1920×1080
HR270QH3-100 BOE 27.0" 2560×1440
BF045WVQ-401 BOE 4.5" 480×854
BV055HDE-N40 BOE 5.5" 720×1280
TV080WXB-NV0 BOE 8.0" 800×1280
AV080WVB-NW2 BOE 8.0" 800×480
BV050HDE-N47 BOE 5.0" 720×1280
BP096WX2-100 BOE 9.6" 800×1280
HV320WHB-N82 BOE 31.5" 1366×768
HV550QUB-B05 BOE 55" 3840×2160
BV047SQE-N40 BOE 4.7" 540×960
