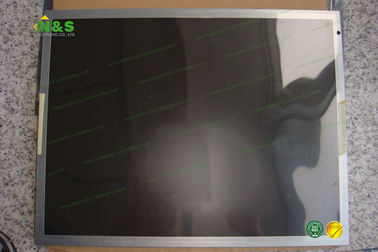

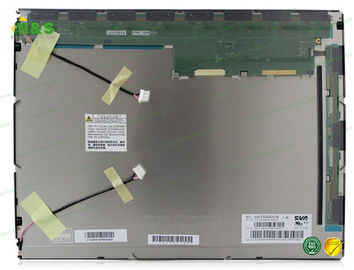

Normally White Transmissive 15.0 inch SVA150XG04TB SVA-NEC for Industrial Application panel Contrast Ratio 450:1 (Typ.)
SVA150XG04TB Basic Information
| Panel Model |
SVA150XG04TB |
| Panel Brand |
SVA-NEC |
| Descrition |
a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type |
a-Si TFT-LCD |
| Operating Temperature |
0 ~ 50 °C |
| Storage Temperature |
-20 ~ 60 °C |
| Remarks |
PSWG Compatible |
SVA150XG04TB Mechanical Features
| Dot Resolution |
1024(RGB)×768 (XGA) |
| Pixel Configuration |
RGB Vertical Stripe |
| Pixel Density |
85 PPI |
| Aspect Ratio |
4:3 (H:V) |
| Form Factor |
Flat Rectangle Display |
| Dot Pitch |
0.099×0.297 mm (H×V) |
| Pixel Pitch |
0.297×0.297 mm (H×V) |
| Weight |
1.00Kgs (Typ.) |
| Active Area |
304.128×228.096 mm (H×V) |
| Bezel Area |
307.4×231.3 mm (H×V) |
| Outline Dimension |
326.5×253.5 mm (H×V) |
| Outline Depth |
11.2/12.0 (Typ./Max.) mm |
| Holes & Brackets |
Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait |
Landscape type |
| Touch Panel |
Without |
SVA150XG04TB Optical Features
| Display Mode |
TN, Normally White, Transmissive |
| Brightness |
250 cd/m² (Typ.) |
| Contrast Ratio |
450 : 1 (Typ.) (Transmissive) |
| Display Color |
16.7M (6-bit + Hi-FRC) |
| Color Gamut |
60% NTSC (CIE1931) |
| Response Time |
3/9 (Typ.)(Tr/Td) |
| Viewing Angle |
60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction |
6 o'clock |
| White color Chromaticity |
Wx:0.313; Wy:0.329 |
| White Variation |
1.20/1.30 (Typ./Max.)(5 points) |
| Sunlight Readable |
N |
