New and original 8.9 inch N089L6-L02 TFT LCD Module CMO with 195.072×113.4 mm Active Area Input Voltage 3.3V (Typ.)

New and original 8.9 inch N089L6-L02 TFT LCD Module CMO with 195.072×113.4 mm Active Area Input Voltage 3.3V (Typ.)
New and original 8.9 inch N089L6-L02 TFT LCD Module CMO with 195.072×113.4 mm Active Area Input Voltage 3.3V (Typ.) New and original 8.9 inch N089L6-L02 TFT LCD Module CMO with 195.072×113.4 mm Active Area Input Voltage 3.3V (Typ.) New and original 8.9 inch N089L6-L02 TFT LCD Module CMO with 195.072×113.4 mm Active Area Input Voltage 3.3V (Typ.)

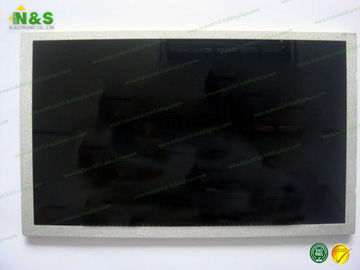

Großes Bild :  New and original 8.9 inch N089L6-L02 TFT LCD Module CMO with 195.072×113.4 mm Active Area Input Voltage 3.3V (Typ.)

Produktdetails:
Herkunftsort: KOREA
Markenname: CMO
Zertifizierung: ISO9001
Modellnummer: N089L6-L02
Zahlung und Versand AGB:
Min Bestellmenge: 1
Verpackung Informationen: Antistatische Tasche, Blasen-Tasche, Schaum-Kasten und Karton-Kasten.
Lieferzeit: 1-3 Werktage
Zahlungsbedingungen: Western Union, T/T, MoneyGram, T/T
Versorgungsmaterial-Fähigkeit: 500pcs/day

New and original 8.9 inch N089L6-L02 TFT LCD Module CMO with 195.072×113.4 mm Active Area Input Voltage 3.3V (Typ.)

Beschreibung
Panel-Typ: EinSi TFT LCD Größe: 8,9 Zoll
Auflösung: 1024×600 Kontrastverhältnis: 400:1 (Art.)
Anzeigen-Farben: 262K (6-bit) Eingangsspannung: 3.3V (Art.)
Markieren:

industrial touch screen display

,

industrial lcd panel

New and original 8.9 inch N089L6-L02 TFT LCD Module CMO with 195.072×113.4 mm Active Area Input Voltage 3.3V (Typ.)



N089L6-L02 Basic Information

Panel Model N089L6-L02
Panel Brand CMO
Descrition a-Si TFT-LCD ,8.9 inch, 1024×600
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C



N089L6-L02 Mechanical Features

Dot Resolution 1024(RGB)×600 (WSVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 133 PPI
Aspect Ratio 17:10 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0635×0.1890 mm (H×V)
Pixel Pitch 0.1905×0.1890 mm (H×V)
Weight 185/200g (Typ./Max.)
Surface Glare (Haze 0%), Hard coating (3H)
Active Area 195.072×113.4 mm (H×V)
Bezel Area 198.27×116.6 mm (H×V)
Outline Dimension 213.36×129.55 mm (H×V)
Outline Depth 5.15/5.45 (Typ./Max.) mm
Holes & Brackets Side mounting holes (4-M2) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without



N089L6-L02 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 200 cd/m² (Typ.)
Contrast Ratio 400 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Response Time 3/7 (Typ.)(Tr/Td)
Viewing Angle 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25 (Max.)(5 points)
Sunlight Readable N



Our Advantage :

>>Quality Guarantee:

Our LCD Panels are 100% original and brand new!

Warranty : 12 months

You can enjoy the real panels directly from the LCD panel brand distributor.

>>Packing Guarantee:

All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!

>>Delivery Guarantee:

We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!

>>After-Sale service

We have many years good experience on display solution.

Any question, we will reply you within 12 hours.



Warranty:

1. All panels’ grade is promised strictly same as original factory’s standard.

2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.

3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.

4. ISO 9001 guarantee.



Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
H426TAN02.0 AUO 4.3" 720×1280
LC490EQJ-SGK1 LG Display 49" 3840×2160
LC420EQJ-SGE2 LG Display 42" 3840×2160
LC650EQK-FGK5 LG Display 65" 3840×2160
CLAG080WQ05 AX CPT 8.0" 800×1280
TT070WSQ-N10 BOE 7.0" 1024×600
C097SNX1 R1 IVO 9.7" 1024×768
C097SNX1 R0 IVO 9.7" 1024×768
P062SWP1 R1 IVO 6.2" 800×480
P101NWT4 R0 IVO 10.1" 1024×600
HSD055FMW1-D00 HannStar 5.5" 540×960
