12.1 inch N121X5-L04 TFT LCD Module resolution 1024×768 Outline 261×198×5 mm Frequency 60Hz

12.1 inch N121X5-L04 TFT LCD Module resolution 1024×768 Outline 261×198×5 mm Frequency	 60Hz
12.1 inch N121X5-L04 TFT LCD Module resolution 1024×768 Outline 261×198×5 mm Frequency	 60Hz

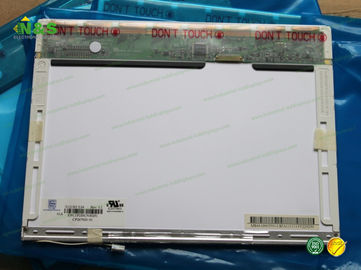

Großes Bild :  12.1 inch N121X5-L04 TFT LCD Module resolution 1024×768 Outline 261×198×5 mm Frequency 60Hz

Produktdetails:
Herkunftsort: KOREA
Markenname: CMO
Zertifizierung: ISO9001
Modellnummer: N121X5-L04
Zahlung und Versand AGB:
Min Bestellmenge: 1
Verpackung Informationen: Antistatische Tasche, Blasen-Tasche, Schaum-Kasten und Karton-Kasten.
Lieferzeit: 1-3 Werktage
Zahlungsbedingungen: T/T, Western Union, MoneyGram, T/T
Versorgungsmaterial-Fähigkeit: 500pcs/day

12.1 inch N121X5-L04 TFT LCD Module resolution 1024×768 Outline 261×198×5 mm Frequency 60Hz

Beschreibung
Panel-Typ: EinSi TFT LCD Größe: 12,1 Zoll
Auflösung: 1024×768 Entwurf: 261×198×5 Millimeter
Kontrastverhältnis: 500:1 (Art.) Frequenz: 60 hz
Markieren:

industrial touch screen display

,

industrial lcd panel

12.1 inch N121X5-L04 TFT LCD Module resolution 1024×768 Outline 261×198×5 mm Frequency 60Hz



Our Promise for our LCD Panels:

You will get reply within 24 Hours and:

ΠYear warranty

ΠDay shipping

‹ Return



After-sale service:
1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare



Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
H497DAN02.0 AUO 5.0" 1080×1920
H495TAN01.1 AUO 5.0" 720×1280
LK315T3HC1K SHARP 31.5" 1366×768
ST2751A01-6 CSOT 27.5" 1366×768
H496TAN01.0 AUO 5.0" 720×1280
H545QAN01.0 AUO 5.5" 1440×2560
TM050JYSP01 Tianma 5.0" 720×1280
LH500M01-SH02 LG Display 5.0" 540×960
LH500WX5-SH01 LG Display 5.0" 720×1280
LH500WX9-SH01 LG Display 5.0" 720×1280
P089DCZ-3A1 Innolux 8.9" 800×1280
BS050HDE-N41-6Q00 BOE 5.0" 720×1280

Pls contact to us for more stock information: salespm@nselectronic.com.hk



N121X5-L04 Basic Information

Panel Model N121X5-L04
Panel Brand CMO
Descrition a-Si TFT-LCD ,12.1 inch, 1024×768
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C



N121X5-L04 Mechanical Features

Dot Resolution 1024(RGB)×768 (XGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 105 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.080×0.240 mm (H×V)
Pixel Pitch 0.240×0.240 mm (H×V)
Weight 240g (Typ.)
Surface Antiglare (Haze 25%), Hard coating (3H)
Active Area 245.76×184.32 mm (H×V)
Bezel Area 250.5×188.9 mm (H×V)
Outline Dimension 261×198 mm (H×V)
Outline Depth 4.7/5.0 (Typ./Max.) mm
Holes & Brackets Side mounting holes (6-M2) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without



N121X5-L04 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 175 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 45% NTSC (CIE1931)
Response Time 5/11 (Typ.)(Tr/Td)
Viewing Angle 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25 (Max.)(5 points)
Sunlight Readable N
