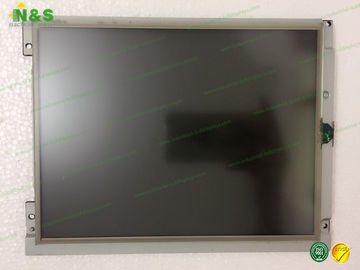

10.4 inch LT104AC36100 Active Area 210.432×157.824 mm resolution 1024×768 Contrast Ratio 400:1 (Typ.)
LT104AC36100 Basic Information
| Panel Model |
LT104AC36100 |
| Panel Brand |
Toshiba Matsushita |
| Descrition |
LTPS TFT-LCD ,10.4 inch, 1024×768 |
| Panel Type |
LTPS TFT-LCD |
| Operating Temperature |
-20 ~ 70 °C |
| Storage Temperature |
-30 ~ 80 °C |
| Remarks |
Mounting compatible with LTA104D182F series. |
LT104AC36100 Mechanical Features
| Dot Resolution |
1024(RGB)×768 (XGA) |
| Pixel Configuration |
RGB Vertical Stripe |
| Pixel Density |
123 PPI |
| Aspect Ratio |
4:3 (H:V) |
| Form Factor |
Flat Rectangle Display |
| Dot Pitch |
0.0685×0.2055 mm (H×V) |
| Pixel Pitch |
0.2055×0.2055 mm (H×V) |
| Weight |
600g (Typ.) |
| Active Area |
210.432×157.824 mm (H×V) |
| Bezel Area |
215.1×163.7 mm (H×V) |
| Outline Dimension |
242×185 mm (H×V) |
| Outline Depth |
13.4 (Typ.) mm |
| Holes & Brackets |
Face mounting holes (2-Φ3.4, 2-3.4×4.4) |
| Landscape or Portrait |
Landscape type |
| Touch Panel |
Without |
LT104AC36100 Optical Features
| Display Mode |
TN, Normally White, Transmissive |
| Brightness |
400 cd/m² (Typ.) |
| Contrast Ratio |
400 : 1 (Typ.) (Transmissive) |
| Display Color |
262K (6-bit) |
| Response Time |
10/20 (Typ.)(Tr/Td) |
| Viewing Angle |
60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) |
| Sunlight Readable |
N |
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Quality Control:
- Visual Inspection
Make sure No damage, No Scratches, No dusty, No light leakage.
- Function Inspection
Make sure all functions are 100% tested ok
