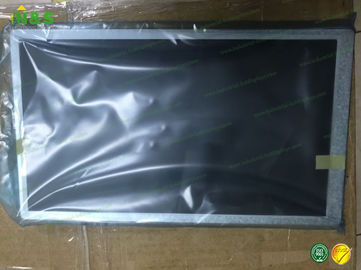

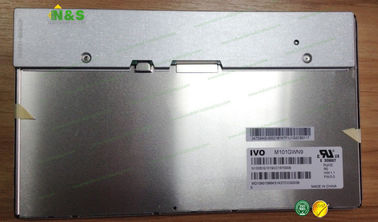

Normally White M101GWN9 R0 TFT LCD Module IVO 10.1 inch 1024×600 resolution Active Area 222.72×125.28 mm

Normally White M101GWN9 R0 TFT LCD Module IVO 10.1 inch 1024×600 resolution Active Area 222.72×125.28 mm
Normally White M101GWN9 R0 TFT LCD Module IVO 10.1 inch 1024×600 resolution Active Area 222.72×125.28 mm Normally White M101GWN9 R0 TFT LCD Module IVO 10.1 inch 1024×600 resolution Active Area 222.72×125.28 mm

Großes Bild :  Normally White M101GWN9 R0 TFT LCD Module IVO 10.1 inch 1024×600 resolution Active Area 222.72×125.28 mm

Produktdetails:
Herkunftsort: KOREA
Markenname: IVO
Zertifizierung: ISO9001
Modellnummer: R0 M101GWN9
Zahlung und Versand AGB:
Min Bestellmenge: 1
Verpackung Informationen: Antistatische Tasche, Blasen-Tasche, Schaum-Kasten und Karton-Kasten.
Lieferzeit: 1-3 Werktage
Zahlungsbedingungen: Western Union, T/T, MoneyGram, T/T
Versorgungsmaterial-Fähigkeit: 500pcs/day

Normally White M101GWN9 R0 TFT LCD Module IVO 10.1 inch 1024×600 resolution Active Area 222.72×125.28 mm

Beschreibung
Panel-Typ: EinSi TFT LCD Größe: 10.1 inch
Auflösung: 1024×600 Oberfläche: Blendschutz-, harte Beschichtung (3H)
Beschriftungsbereich: 222.72×125.28 Millimeter Eingangsspannung: 3.3V (Art.)
Markieren:

industrial touch screen display

,

industrial lcd screen

Normally White M101GWN9 R0 TFT LCD Module IVO 10.1 inch 1024×600 resolution Active Area 222.72×125.28 mm



M101GWN9 R0 Basic Information

Panel Model M101GWN9 R0
Panel Brand IVO
Descrition a-Si TFT-LCD ,10.1 inch, 1024×600
Panel Type a-Si TFT-LCD
Operating Temperature -30 ~ 85 °C
Storage Temperature -30 ~ 85 °C



M101GWN9 R0 Mechanical Features

Dot Resolution 1024(RGB)×600 (WSVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 117 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0725×0.2088 mm (H×V)
Pixel Pitch 0.2175×0.2088 mm (H×V)
Weight 440/440g (Typ./Max.)
Surface Antiglare, Hard coating (3H)
Active Area 222.72×125.28 mm (H×V)
Bezel Area 225.72×128.28 mm (H×V)
Outline Dimension 244×143 mm (H×V)
Outline Depth 7.2/12.9 (Typ./Max.) mm
Landscape or Portrait Landscape type
Touch Panel Without



M101GWN9 R0 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 500 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 262K/16.7M (6-bit / 6-bit + Dithering)
Color Gamut 45% NTSC (CIE1931)
Response Time 16 (Typ.)(Tr+Td)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity Wx:0.305; Wy:0.325
White Variation 1.25/1.33 (Typ./Max.)(9 points)
Sunlight Readable N



What is Our Advantage?

1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.

2. We can provide the one-stop purchase service.

3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.

4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.

5. Fast delivery.

6. Reasonable price.



We Can Do for You:

1) One-to-one service with efficient & professional support;

2) Protection of your design and all your private information;

3) We could supply different hard disk for you.

4) Quality stability, can to provide certification of products;

5) Convenient payment methods: PayPal, T/T and Western Union;

6) Speedy shipment: we could arrange the shipment within 1-3 business days.

7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.

8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.



Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
C060SWA3 R0 IVO 6.0" 720×1280
C080SWW3-0 IVO 8.0" 800×1280
CLAP042JB01 DW CPT 4.2" 480×272
BP096WX7-100 BOE 9.6" 800×1280
V500HK3-PS1 Innolux 50" 1920×1080
ST3151A04-7 CSOT 31.5" 1366×768
HSD0702FW1-A00 HannStar 7.0" 1024×600
TPF0702002N JDI 7.0" 1200×1920
LQ156D1JX02 SHARP 15.6" 3840×2160
BF050QHE-400 BOE 5.0" 540×960
