Normally White 10.1 inch M101NWT2 R2 TFT LCD Module IVO with 222.72×125.28 mm Active Area new and original

Name: Normally White 10.1 inch M101NWT2 R2 TFT LCD Module IVO with 222.72×125.28 mm Active Area new and original
Brand: IVO
SKU: M101NWT2 R2
Price: 1 USD
Availability: InStock
Rating: 4.6 (162 reviews)

Alle Produkte

auo lcd-Platte
(704)

Platte Chimei LCD
(56)

Platte Hitachis lcd
(57)

Platte Innolux LCD
(340)

Anzeige KOE LCD
(86)

Tianma LCD-displays
(190)

Platte Fahrwerkes lcd
(360)

Platte NEC LCD
(416)

Platte Samsungs LCD
(202)

scharfe lcd-panel
(905)

optrex lcd-Anzeige
(32)

tft lcd-Modul
(332)

Industrie-LCD-Displays
(1079)

Arm-Entwicklungs-Brett
(9)

medizinische lcd-Anzeigen
(125)

Automobil-LCD-Anzeige
(20)

CCFL-Energie-Inverter
(104)

Beste Produkte

Normalerweise schwarzes Fahrwerk LM215WF3-SLC1 21,5 Zoll mit 475,2 × 267,3 (H×V) für Tischplattenmonitor

FG050720DSSWDGT1 5.7 inch 640×480 Active Area 115.2×86.4 mm Outline 127.4×98.43×9.2 mm Frequency 60Hz

AA141TC01 18,5 Zoll industrieller LCD zeigt Transmissive Blendschutz TFT LCD-MODUL Oberfläche an

Bescheinigung

China N&S ELECTRONIC CO., LIMITED zertifizierungen

Kunden-Berichte

Wir sind voll von den ausgezeichneten Gedächtnissen, N&S sind eine sehr gute Organisation zurückgekommen. Wirklich sachverständig für LCDs.

—— ANDY

Wir möchten den Service preisen, den wir von dieser Firma empfingen, die tadellos unsere LCD-Plattenzuleitung organisierte.

—— M.H. Thatcher

Wenn ich einen anderen LCD-Plattenauftrag plane, zögere ich nicht, mit Ihnen wieder in Verbindung zu treten.

—— Alejandro

Ich bin online Chat Jetzt

Normally White 10.1 inch M101NWT2 R2 TFT LCD Module IVO with 222.72×125.28 mm Active Area new and original

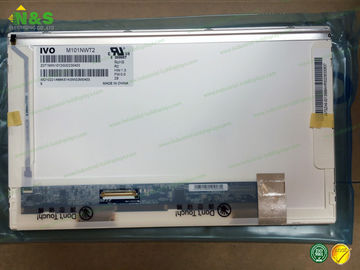

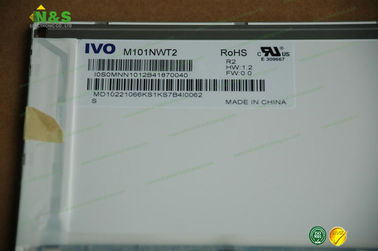

Großes Bild : Normally White 10.1 inch M101NWT2 R2 TFT LCD Module IVO with 222.72×125.28 mm Active Area new and original

Produktdetails:

Herkunftsort:	KOREA
Markenname:	IVO
Zertifizierung:	ISO9001
Modellnummer:	M101NWT2 R2

Zahlung und Versand AGB:

Min Bestellmenge:	1
Verpackung Informationen:	Antistatische Tasche, Blasen-Tasche, Schaum-Kasten und Karton-Kasten.
Lieferzeit:	1-3 Werktage
Zahlungsbedingungen:	Western Union, T/T, MoneyGram, T/T
Versorgungsmaterial-Fähigkeit:	500pcs/day

Kontakt

Normally White 10.1 inch M101NWT2 R2 TFT LCD Module IVO with 222.72×125.28 mm Active Area new and original

Beschreibung

Panel-Typ:	EinSi TFT LCD	Größe:	10.1 inch
Auflösung:	1024×600	Entwurf:	235×143×5.2 Millimeter
Oberfläche:	Blendschutz-, harte Beschichtung	Frequenz:	60 hz
Markieren:	industrial touch screen display , industrial lcd panel

Normally White 10.1 inch M101NWT2 R2 TFT LCD Module IVO with 222.72×125.28 mm Active Area new and original

Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.

Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days

M101NWT2 R2 Basic Information

Panel Model	M101NWT2 R2
Panel Brand	IVO
Descrition	a-Si TFT-LCD ,10.1 inch, 1024×600
Panel Type	a-Si TFT-LCD
Model Alias	M101NWT2-R2
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C

M101NWT2 R2 Mechanical Features

Dot Resolution	1024(RGB)×600 (WSVGA)
Pixel Configuration	RGB Vertical Stripe
Pixel Density	117 PPI
Aspect Ratio	16:9 (H:V)
Form Factor	Flat Rectangle Display
Dot Pitch	0.0725×0.2088 mm (H×V)
Pixel Pitch	0.2175×0.2088 mm (H×V)
Weight	190g (Max.)
Surface	Antiglare, Hard coating
Active Area	222.72×125.28 mm (H×V)
Bezel Area	226.42×128.48 mm (H×V)
Outline Dimension	235×143 mm (H×V)
Outline Depth	5.2 (Max.) mm
Shape Style	Wedge (PCBA Bent, Depth ≥5.2mm)
Holes & Brackets	Side mounting holes (4-M2) on left, right bezel
Landscape or Portrait	Landscape type
Touch Panel	Without

M101NWT2 R2 Optical Features

Display Mode	TN, Normally White, Transmissive
Brightness	200 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (Transmissive)
Display Color	262K (6-bit)
Color Gamut	45% NTSC (CIE1931)
Response Time	3/5 (Typ.)(Tr/Td)
Viewing Angle	45/45/15/35 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction	6 o'clock
White color Chromaticity	Wx:0.313; Wy:0.329
White Variation	1.25/1.60 (Max.)(5/13 points)
Sunlight Readable	N

Below are our other LCD panels stock for your easy reference:

Panel Model	Brand	Size	Resolution
C097SNX1 R0	IVO	9.7"	1024×768
P062SWP1 R1	IVO	6.2"	800×480
P101NWT4 R0	IVO	10.1"	1024×600
C055SWA3-0	IVO	5.5"	720×1280
C050SWZ9-0	IVO	5.0"	540×960
C050SWA6 R0	IVO	5.0"	720×1280
C060SWA4-0	IVO	6.0"	720×1280
C060SWA3 R0	IVO	6.0"	720×1280
C080SWW3-0	IVO	8.0"	800×1280
C055SWY2-0	IVO	5.5"	480×854
C050SWY8-1	IVO	5.0"	480×854

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
