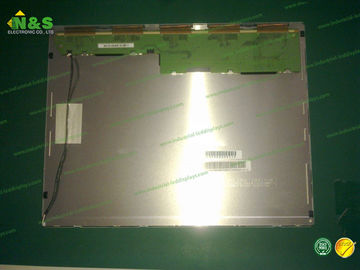

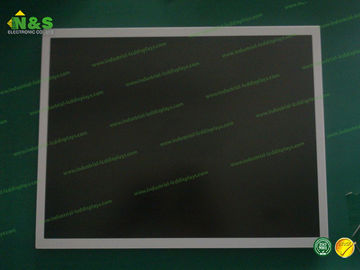

TM150TDSG52 AVIC 15.0 inch with 304.128×228.096 mm Active Area resolution 1024×768 Surface Antiglare
TM150TDSG52 Basic Information
| Panel Model |
TM150TDSG52 |
| Panel Brand |
AVIC |
| Descrition |
a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type |
a-Si TFT-LCD |
| Operating Temperature |
0 ~ 65 °C |
| Storage Temperature |
-20 ~ 65 °C |
TM150TDSG52 Mechanical Features
| Dot Resolution |
1024(RGB)×768 (XGA) |
| Pixel Configuration |
RGB Vertical Stripe |
| Pixel Density |
85 PPI |
| Aspect Ratio |
4:3 (H:V) |
| Form Factor |
Flat Rectangle Display |
| Dot Pitch |
0.099×0.297 mm (H×V) |
| Pixel Pitch |
0.297×0.297 mm (H×V) |
| Weight |
1.00Kgs (Typ.) |
| Surface |
Antiglare |
| Active Area |
304.128×228.096 mm (H×V) |
| Bezel Area |
307.4×231.3 mm (H×V) |
| Outline Dimension |
326.5×253.5 mm (H×V) |
| Outline Depth |
11.8±0.3 mm |
| Holes & Brackets |
Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait |
Landscape type |
| Touch Panel |
Without |
TM150TDSG52 Optical Features
| Display Mode |
TN, Normally White, Transmissive |
| Brightness |
250 cd/m² (Typ.) |
| Contrast Ratio |
600 : 1 (Typ.) (Transmissive) |
| Display Color |
262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut |
60% NTSC (CIE1931) |
| Response Time |
3/5 (Typ.)(Tr/Td) |
| Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity |
Wx:0.313; Wy:0.329 |
| White Variation |
1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable |
N |
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
